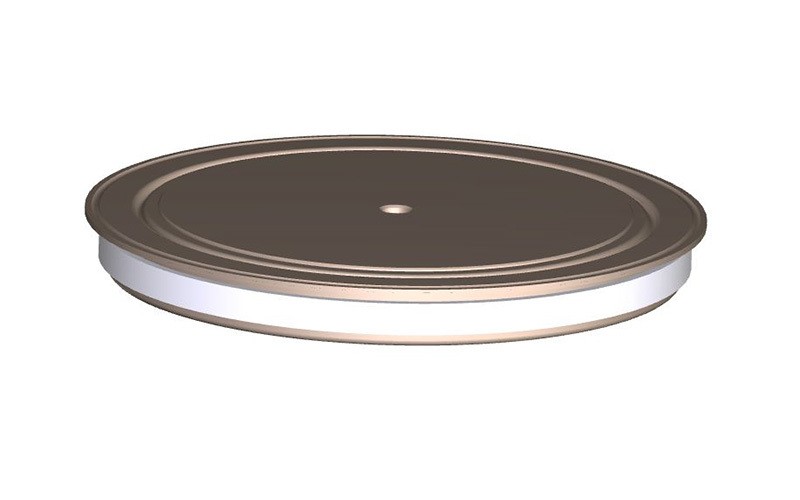

D063-11500 is a welding diode in disc design. It has a repetitive peak reverse voltage VRRM of 200-400 V and low static losses. Mean forward current IFAV equals 11500 A. Industry standard design enables easy installation into existing equipment. Maximal junction temperature Tjmax is 180 °C. Diameter of the contact surface is 57 mm.
“D0” series of welding diodes by Nimatek Technology has the following features:
∙ ability to conduct high mean forward current, allowing to reduce the amount of parallel devices
∙ high resistance to electric and thermal cycling ensures a long service life;
∙ minimal static losses;
∙ high maximal junction temperature (Tjmax) allows these diodes to conduct higher current with the same cooling system;
∙ possibility of double-sided cooling;
∙ optimized for high current rectifiers;
∙ very low thermal resistance;
∙ designed for medium-frequency welding equipment.
At the customer’s request Nimatek Technology is able to select the optimal power diode for given operation modes. It is also possible to ship ready-to-use power semiconductors in assembly with heatsinks.
